Description
Product Description (copy From Elcometer.com)
Fast and accurate, the Elcometer 500 Coating Thickness Gauge takes repeatable and reproducible dry film thickness measurements of coatings on concrete up to 10mm‡ thick – without damaging the coating.
Taking over 60 readings per minute in standard mode and 140+ readings per minute in scan mode; the
Elcometer 500 Coating Thickness Gauge allows users to inspect more coatings in less time. With a choice of intelligent, ergonomic probes, designed for continuous use and field replaceable probe tips you can inspect all day, everyday.
The built in signal strength indicator on the Elcometer 500 Coatings on Concrete Gauge prevents false or incorrect readings, as the gauge only displays the coating thickness measurement if the signal strength indicator goes green.
Robust, ergonomic and sealed against dirt and water, equivalent to a rating of IP54, the Elcometer 500 Dry Film Thickness Gauge has been designed to work in harsh environments.
Incredibly easy to use, the Elcometer 500 Coating Thickness Gauge for concrete can be used in accordance with ASTM D6132, SSPC PA9 & ISO 2808 Method 10.
Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual coating thickness measurements can be transferred via USB or Bluetooth® to PC or a mobile device for analysis and instant report generation.
Key Features of the Elcometer 500 Coating Thickness Gauge:
Fast
Measuring over 60 readings per minute in standard mode and over 140 readings per minute in scan mode, the Elcometer 500 coating thickness gauge can significantly reduce your inspection times.
Reliable
The Elcometer 500 will only display the coating thickness reading if the signal strength indicator turns green, preventing false or incorrect readings.
If the coating thickness is outside the measurement range, the
Elcometer 500 tells you on the display.
Intelligent
The Elcometer 500 measurement probes are supplied with user replaceable probe tips. If the tip is damaged or wears during use you can replace it and carry on.
The gauge even informs you when you need to change the probe tip, maximising inspection time.
Easy to Use
There is no need to set up gates, range values or know the thickness of the coating, simply select the coating material from the gauge library and start measuring.
Ergonomic
The Elcometer 500 gauge and intelligent probes have all been ergonomically designed for continuous use. No force is required to take a reading.
Rugged
Robust, ergonomic and sealed against dirt and water, equivalent to a rating of IP54, the Elcometer 500 has been designed to work in harsh environments, making it the ideal gauge for the laboratory or the job site.
How to Calibrate the Elcometer 500 Coating Thickness Gauge:
Incorporating state of the art ultrasonic measurement technology, each gauge can be calibrated in one of three ways – to a known thickness of the coating to be inspected; by setting the speed of sound of the coating; or by selecting the coating from a list of generic, or user defined coating materials.
Once the gauge has been calibrated, the Elcometer 500 has a measurement accuracy of ±2%.
How to create a coating thickness sample for the Elcometer 500 using the Elcometer Coating Calibration Mould (CCM):
By using the Elcometer Coating Calibration Mould the Elcometer 500 calibration is traceable to national and international standards. The user defined coatings can be transferred into the Material Coatings Library within ElcoMaster® for use, at any time, on any Elcometer 500 gauge. Select the coatings from your list and transfer them to any Elcometer 500 gauge.
More information on how to use the Elcometer Coating Calibration Mould with the Elcometer 500 Coating Thickness Gauge can be found on the Accessories page.
* Similar substrates include plasterboard, drywall, concrete block, brick etc.
‡Epoxy coatings, thickness on other materials may vary
*Compatible with iPod, iPhone and iPad.
Elcometer 500 Models S & T: Made for iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPhone 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad (3rd and 4th generation), iPad mini, iPad 2, and iPod touch (4th and 5th generation).
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.
iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Suitable for mobile devices running Android™ software version 2.1 and upwards. Android™ and Google Play are trademarks of Google Inc.
Technical Specifications – New Elcometer 500 Concrete Coating Thickness Gauge |
||
| Product Features | ■ Standard | □ Optional |
| Model B | Model T | |
| Fast, accurate reading rate; 60+ readings per minute | ■ | ■ |
| Repeatable & reproducible measurements | ■ | ■ |
| Easy to use menu structure; in 30+ languages | ■ | ■ |
| Tough, impact, waterproof & dust resistant; equivalent to IP54 | ■ | ■ |
| Bright colour screen; with automatic rotating display (0°, 90°, 180° & 270°) | ■ | ■ |
| Scratch & solvent resistant display; 2.4″ (6cm) TFT | ■ | ■ |
| USB power supply; via PC | ■ | ■ |
| Test certificate & 2 year gauge warranty* | ■ | ■ |
| Ambient light sensor; with adjustable auto brightness | ■ | ■ |
| Automatic probe recognition | ■ | ■ |
| Gauge software updates¹; via ElcoMaster® software | ■ | ■ |
| Data output | ■ | ■ |
| USB; to computer | ■ | ■ |
| Bluetooth®; to computer, Android™ & iOSǂ devices | ■ | |
| Measurement units; μm, mm, mils, inch | ■ | ■ |
| Signal strength indicator | ■ | |
| User selectable reading resolution; Low & High reading resolution | ■ | ■ |
| Display modes; user selectable | ■ | |
| Readings | ■ | ■ |
| Readings & differential; reading and the offset from a set nominal difference | ■ | |
| Bar graph | ■ | |
| Live reading trend graph; in batch mode | ■ | |
| Run chart; trend graph of last 20 readings | ■ | |
| User selectable statistics; | ■ | ■ |
Number of readings; η, Mean (average); x, Standard deviation; σ,
|
■ | ■ |
| Normal dry film thickness; NDFT, High & low limits; definable audible & visual alarms,
Number of readings above high limit; Number of readings below low limit; Range; I |
■ | |
| Multiple calibration methods with on-screen instructions; in 30+ languages | ■ | ■ |
| Material selection; preset choice of materials or create own user defined materials | ■ | ■ |
| Velocity entry; direct entry of a material’s sound-velocity | ■ | ■ |
| 1 Point; using a coating sample of known thickness | ■ | ■ |
| Calibration lock; with optional PIN code unlock | ■ | ■ |
| Gauge memory; number of readings | 100,000 | |
| Number of batches; with unique batch calibrations | 1,000 | |
| Alpha-numeric batch names; user definable on the gauge | ■ | |
| Fixed batch size mode; with batch linking | ■ | |
| Batch review graph | ■ | |
| Delete last reading | ■ | ■ |
| Limits; 40 user definable audible & visual pass/fail warnings | ■ | |
| Live reading mode; transfer of individual readings to external device | USB | USB & Bluetooth® |
| Reading save function | ■ | ■ |
| Date and time stamp | ■ | |
| Scan mode | ■ | |
| ElcoMaster® software & USB cable | □ | ■ |
| Protective case | ■ | ■ |
| Plastic transit case | □ | ■ |
* The Elcometer 500 is supplied with a one year warranty against manufacturing defects. Gauge warranty can be extended to two years via www.elcometer.com.
ǂ Visit www.elcometer.com/sdk to find out how to integrate Elcometer’s MFi certified products to your App.
1 Internet connection required
| Technical Specification | ||
| Part Number | Description | Certificate |
| A500C-B | Elcometer 500 Coating Thickness Gauge Model B | ● |
| A500C-T | Elcometer 500 Coating Thickness Gauge Model T | ● |
| A500-KIT1 | Elcometer 500 Coatinngs on Concrete Inspection Kit | ● |
| Operating Temperature | -10 to 50°C (14 to 122°F) | |
| Power Supply | 2 x AA batteries (rechargable batteries can be used) | |
| Battery Life | Alkaline: Approximately 15 hours Lithium: Approximately 28 hours | |
| Gauge weight | 161g (5.68oz) including batteries, without transducer | |
| Gauge Dimensions | 141 x 73 x 37mm (5.55 x 2.87 x 1.46”) without transducer | |
| Packing List | Elcometer 500 Coating Thickness Gauge Model B & T
Elcometer 500 Coating Thickness Gauge, 4ml (0.14fl oz) Bottle of Probe Tip Oil, 120ml (4fl oz) Bottle of Ultrasonic Couplant, 2 x AA Batteries, Protective Case, Transit Case (Model T), Wrist Harness, 3 x Screen Protector, ElcoMaster® Software (Model T), USB Cable (Model T), Test Certificate Elcometer 500 Coatings on Concrete Inspection Kit Elcometer 500 Model T Coating Thickness Gauge, C1 & C2 coating thickness probes, C1 & C2 probe measurement foils: 1, 2, 3 & 8mm (40, 80, 120 & 310mils), Elcometer 456 Model B Ferrous Integral Gauge, Elcometer 456 calibration foils: 0.5 & 1.5mm (20 & 60mils), 2 x coating calibration moulds, 120ml (4fl oz) bottle of ultrasonic couplant, 4ml (0.14fl oz) bottle of probe tip oil, transit case, ElcoMaster® software & USB cable |
|
| Probe Range | ||

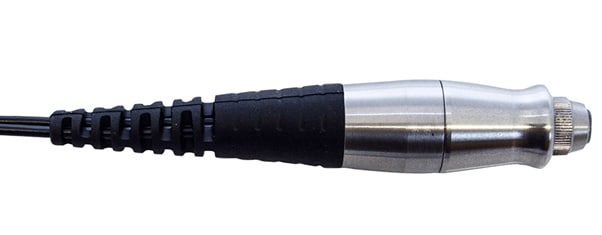

| Scale C1 | T500-C1 Elcometer 500 Scale C1 Probe | Certificate |
 |
Range1: 150 – 2,500μm (6 – 98mils) Accuracy2: ±2% or ±10μm (±2% or ±0.4mil) | ● |
| Resolution: Low: 10μm, 0.01mm, 1mil or 0.001” High: 1μm, 0.001mm, 0.1mil or 0.0001” | ||

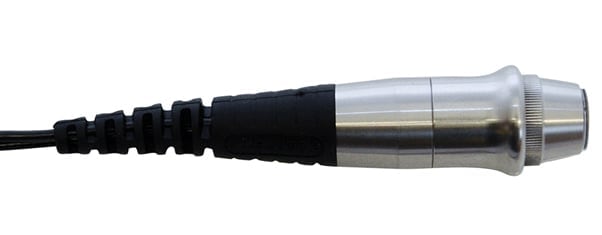

| Scale C2 | T500-C2 Elcometer 500 Scale C2 Probe | Certificate |
 |
Range1: 750 – 10,000μm (30 – 390mils) Accuracy2: ±2% or ±10μm (±2% or ±0.4mil) | ● |
| Resolution: Low: 10μm, 0.01mm, 1mil or 0.001” High: 1μm, 0.001mm, 0.1mil or 0.0001” | ||
All Information we collect/Copy from Elcometer.com
