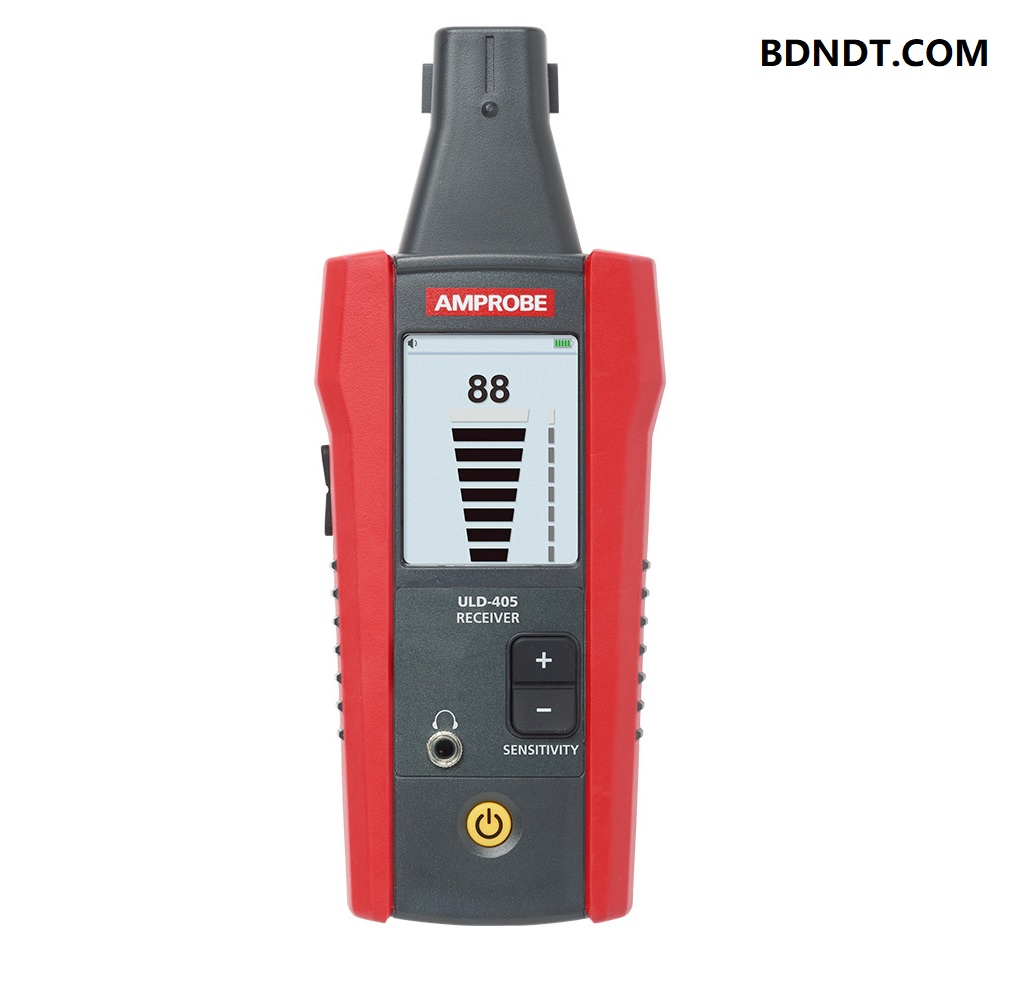

Amprobe ULD-405 Ultrasonic Leak Detector
The ULD-405 is ideal for inspecting:

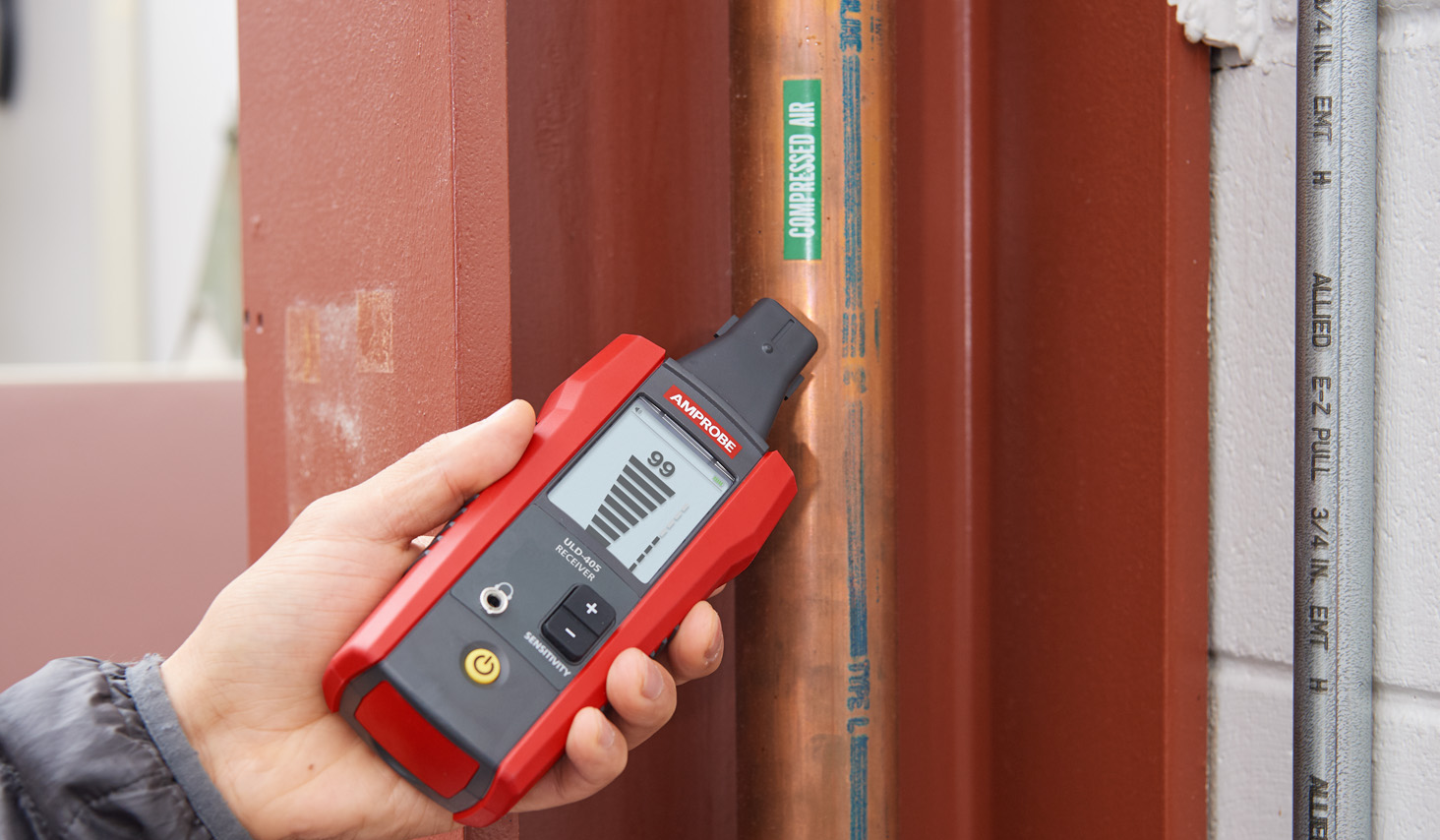

- Compressed air or other gases*
- Plumbing
- Electrical and mechanical systems
- Valves, tanks and pipes
- Heat exchangers, boilers and condensers
- Air conditioning and refrigeration systems
- Motors and machinery
- Automotive repair
Specifications
| ULD-405-R Receiver | |
| Sensitivity Adjustment | Yes |
| Volume Adjustment | Yes |
| Earphone Jack (3.5 mm) | Yes |
| Display Size | LCD 2.5 in (6.35 cm) |
| Display Dimensions | 1.45 x 1.93 in (36.72 x 48.96 mm) |
| Display Resolution | 240(RGB) x 320 pixels |
| Display Type | TFT-LCD (262 K) |
| Display Color | True, 16bit/color |
| Frequency Range | 20 kHz to 90 kHz |
| Power Supply | 4 x 1.5 V AA (LR6) alkaline batteries |
| Power Consumption (typical) | 75 mA |
| Battery Life (typical) | 105 hours (Alkaline) |
| Low Battery Indication |  |
| Weight | Approx. 0.518 lb (0.235 kg) |
| Dimensions | 7.547 x 2.984 x 1.791 in (183 x 75 x 43 mm) |
| APO function | 60 minutes when in idle |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Operating Humidity | <80% RH |
| Pollution Degree | 2 |
