Description

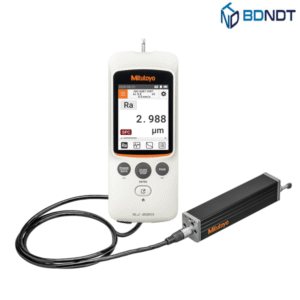

BDNDT Provide all kinds of Digital Surface Roughness Tester in Bangladesh
Function
1.Buttons:on/off ,zero.mm/inch,data hold,max/min
2.Operating temperature :-10-40°C
3.Humidity:≤80% RH
4.Battery :3.7V lithium battery(Rechargeable battery),Charging /communication interface :USB Type-C
5.Directly measure the maximum,minimum value and range
6.Analog pointer
7.Absolute measurements
8.Data output
Button Function(how to use )
①On/off key :Press this button to start or shut down the machine
②MM/IN key:short press to convert metric to inch units,long press to change the direction of measurements
③Hold key:short press for data retention,long press to set the current analog pointer to zero
④ZERO/MAX/MIN key:short press to set the LCD data to Zero ,long press to start or exit the maximum value ,mininum value ,range measurement etc.
Technical Parameters
Model number:GS5337
Measuring range :0-6.5mm/0-6500um
Accuracy:±3um
Resolution:1um
Power supply mode:3.7V lithium battery
Charging/communication interface :USB Type-C,RS232 Interface signal
Waterproof :IP54
5.Usage
1. Press ON/OFF key to start up.
2. Put the tester on a flat place, such as glass plate, and press ZERO/MAX/MIN key to clear to zero.
3. After zero cleaning, it can be used to measure the surface to be measured.
Packing List With Accessories
- main unit*1
- Glass standard block*1
- Charging kit*1
- PC data cable *1 CD*1
- Carrying Case*1
- Operation Manual*1
