DM5E Ultrasonic Thickness Gauge Price in Bangladesh
Feature:
- User-friendly operator keypad interface
- High-resolution LCD screen with backlight and adjustable contrast
- Adjustable Auto-Off feature after user-selected period of inactivity
- Menu-driven calibration with onscreen guidance
- One-Point, 2-Point, On-Block, and Off-Block Calibration
- Built-in calibration reminder, to remind the user to calibrate after a specified number of measurements or after a given time period
- Dual Multi measurement in both Dual multi and Datalogger models
- Field-approved, simple intuitive CL5 user interface
- Switchable languages: English, Spanish, German, Chinese, Japanese, Italian, Russian, and French
- Easily Upgradeable to the changing situations and the related functionality needed

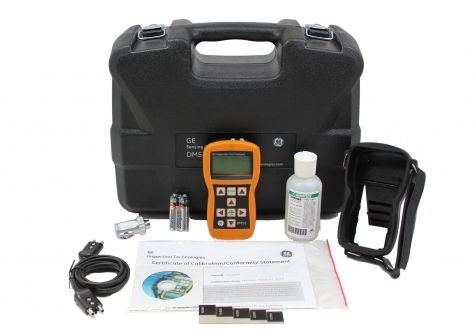

BDNDT Supply The Waygate Technologies Krautkramer DM5E ultrasonic thickness gauge, a Baker Hughes business product (formerly GE Inspection Technologies), is a rugged and easy-to-use ultrasonic thickness gauge designed to perform corrosion monitoring on equipment such as pipes or tanks in the oil & gas industry or the petrochemical and power industries in Bangladesh. The Waygate Krautkramer DM5E is designed for operation in the harshest of working environments, and is IP54 rated dustproof and dripping-water proof.
Dual Multi Mode allows the user to take measurements on components and structures with protective coatings. The DM5E with the Data Logger has a file display mode for users to create and store thickness readings in files. This battery-powered gauge is able to perform for up to 60 hours of use and includes features such as Min/Max capture and B-Scan generation. Differential thickness measurement allows it to compare measured and nominal thickness as well.
All DM5E models offer a range of measurement displays.
Normal Display
- thickness values are shown as large digits in the center of the display
Mini Scan
- a minimum thickness scan that allows the user to run the probe over the wall surface
- the minimum material thickness measured is displayed after the evaluation period
Maxi Scan
- a maximum thickness scan that functions like the Mini Scan
DIFF/RR%
- compares the measured thickness with a user-specified nominal thickness
- the dimensional difference between the two values is displayed, as is the percentage difference
B-Scan
- displays a graphic representation of a B-scan showing minimum thickness values with the graph derived by measuring and recording at 1 point per second
The Waygate Technologies Krautkramer DM5E series replaces the Krautkramer DM4E, DM4, DM4DL, and StressTel T-MIKE E family of corrosion thickness gauges.
| Instrument Specifications | |
| Measuring Range* | 0.60 mm to 508 mm (0.025” to 20.00”) in IP to 1st BW Measurement Mode, 2.00 mm to 127.0 mm (0.079” to 5.00”) in Dual-Multi Measurement Mode, the Coating Thickness Range Shall be 0.3 mm to 2.50 mm (0” to 0.098”). |
| Measuring Resolution | 0.01 mm Default – Selectable 0.01, 0.1 mm (0.001” Default – Selectable 0.001, 0.01”) |
| Material Velocity Resolution | 1 m/s (0.0001”/msec) |
| Calibration | One-Point Cal, Two-Point Cal, On-Block, and Off-Block |
| Pulser | Excitation Pulse – Spike Pulser Voltage – 120 V into 50 ohm Load, Using 20 MHz Oscilloscope |
| Reciever | Bandwidth – 500KHz to 12 MHz @ -3 dB Gain – Automatic Gain Control |
| Display Type | High-Resolution Graphical LCD, 64 x 128 Pixels, 53.0 mm x 27.0 mm with Backlight and Adjustable Contrast |
| Update Rate | 4 Hz or 8 Hz, User Selectable, 24 Hz Scan Mode Capture Rate |
| Thickness Value Display | NORMAL View Mode 5 Digit, 10.6 mm (0.4”) High B-SCAN View Mode 5 Digit, 2.55 mm (0.1”) High |
| Display of Last Reading | Solid Filled or Hollow Digits Indicate Coupled or Uncoupled Condition |
| Setups | 9 Standard Setups for Probes |
| Alarm Settings | Minimum and Maximum Alarms, Range of 0.25 mm to 508 mm, 0. (0.010” to 20.00”) Reading Alternates Between Solid and Hollow When Alarms Are Enabled and Violated |
| Power Requirements | 2 AA Size Batteries |
| Battery Life/Operating Time |
60 Hours |
| Instrument Shut-0ff | Selectable ALWAYS ON or AUTO OFF After 5, 10, 15, 30 Minutes of Inactivity |
| Language | Selectable English, German, French, Spanish, Italian, Russian, Japanese and Chinese |
| I/O Connectors | Transducer Dual Lemo 00 (coax) Mini-USB Mini-USB to PC |
| Temperature | Operating -10°C to +50°C (+10°F to +120°F) Storage -20°C to +60°C (-10°F to +140°F) |
| Weight | 223 g (0.597 lb) Including Batteries |
| Size | 138 mm x 32 mm x 75 mm |
| Shock | IEC 68-2-27 Ea, as per Mil Std 810C Method 516.2 Procedure I with a 15g 11ms Impulse Half Sinusoidal Wave Applied 6 Times per Axis |
| Sealing | IEC529 / IP54, Dust Proof/Dripping Water Proof as per IEC 529 Specifications for IP54 Classification |
*Depends on Probe and Material
