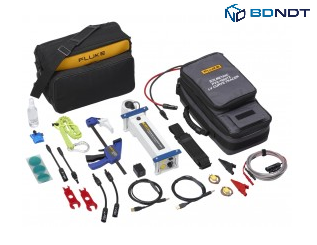

Fluke PVA-1500T2 Solmetric PV Analyzer I-V Curve Tracer Kit in Bangladesh
Features
- Built-in PV performance modeling and advanced wireless irradiance, temperature and tilt sensing
- Unprecedented measurement throughput with sweep-to-sweep delays as low as nine seconds
- Saves time through automated data analysis and reporting, streamlining the process of obtaining and interpreting measurement results
- Uninterrupted measurements even in hot environments
- Measures and displays I-V curves up to 1500 V and 10 A
- Advanced built-in PV model provides immediate PV performance checking
- Sweep-to-sweep delay of nine seconds to measure 3.5 MW in under an hour
- Database of more than 70,000 modules with automatic updates
- Wireless interfaces for faster setup, safer work environment, and freedom of movement during PV troubleshooting
- In-the-field firmware update ready
- PC connection during testing allows you to analyze and manage data in the field
- Solmectric PV Analyzer Software and Data Analysis Tool (DAT) insights, visualizations, and customizable reports
Fluke PVA-1500T2 Specifications
| Maximum Current (Isc) Module Efficiency | <19%: 30 A DC ≥19%: 10 A DC |
| Sweep-to-Sweep Delay (at VOC ≥1350 V) | <9 seconds |
| Maximum Number of I-V Sweeps per Hour (at VOC ≥1350 V) | 400 sweeps/hour |
| Maximum Megawatts Measured per Hour | 3.5 MW/hour |
| Thermal Capacity – Number of I-V Sweeps Before the PVA Must Cool Down | Unlimited: 77°F (25°C) ambient, 9 or 18 second sweep-to-sweep delay 550: 113°F (45°C) ambient, 18 second sweep-to-sweep delay 330: 113°F (45°C) ambient, 9 second sweep-to-sweep delay |
| SolSensorâ„¢ | Irradiance accuracy: ±2% when used to predict the performance of well-characterized poly and monocrystalline PV modules with direct irradiance >600 W/m2 Cell temperature accuracy: ±2°C (not including limits of error or thermocouple) Tilt accuracy: ±2° typical (0 to 45°) Update interval: Typically 3.5 seconds Wireless range: 330′ (100 m), open line of sight |
| Voltage Range (VOC) | 20 to 1500 V DC |
| Current | 30 A DC (module efficiency <19%) |
| Accuracy | Voltage: ±(0.5% + 0.25 V) Current: ±(0.5% + 0.04 A) Power: ±(1.7% + 1 W), current ≥3 A, module efficiency <19% |
| I-V Trace Points | 100 or 500 (selectable) |
| I-V Sweep Duration | 0.05 to 2 seconds (typically 0.2 seconds for PV strings) |
| Interface to PC/Tablet | Wi-Fi |
| FW Field Updatable | Yes |
| Operating Temperature (Ambient) | 32 to 113°F (0 to 45°C) |
| Safety and Regulatory | CAT III 1500 V, CE, UKCA, TUV, IEC 62446-1 |
| Battery | Lithium-ion |
| Dimensions | 24 x 17 x 12″ (61 x 43 x 30.5 cm) |
| Weight | 14 lbs (6.35 kg) |
