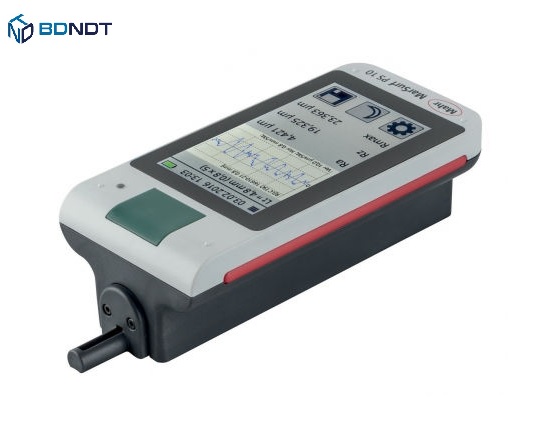

MarSurf PS10 Portable Surface Roughness Tester
৳ 390,000.00৳ 410,000.00 (-5%)
Features

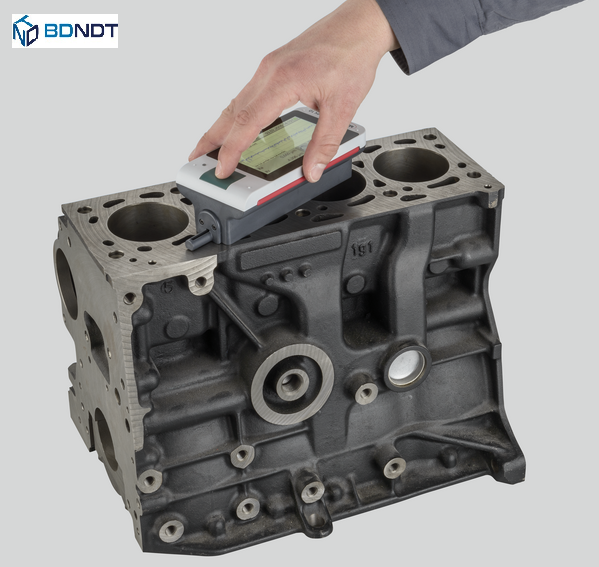

Compact roughness measuring instrument for mobile use
Simple and intuitive to use: As easy to use as a smart phone

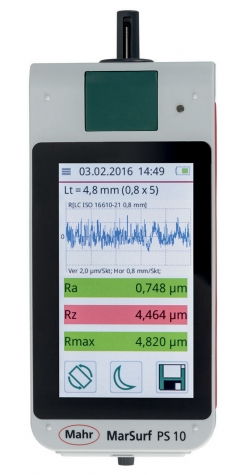

Large, illuminated 4.3″ TFT touch display
Adjustable display
Start button also serves as the Home button for direct access to the start screen
Data backup as TXT, X3P or PDF file
Creation of completed PDF measuring records in the measuring device
Customer-specific comments for the PDF measuring record are entered directly into the MarSurf PS 10
Power supply independent operation: Over 1200 measurements without having to recharge the instrument
An all in one solution. Small and lightweight (approx. 500 g)
Instrument flexibility: Removable drive unit
All the measuring positions you need: horizontal, vertical, upside down
31 surface parameters offer the same range of functions as a laboratory instrument.
Error free operation thanks to an integrated, removable roughness standard
Quick access to your frequently used functions via the Favorites list in the display
Very short activation time: results available within seconds
Automatic cutoff selection, so even non-specialists can be sure of getting the correct measuring results
BDNDT Provide all kinds of Surface Roughness Tester in Bangladesh. BDNDT Supply MarSurf PS-10 Mobile Roughness Measurement – Simple, smart and mobile manufacturing by MAHR Origin in Garmany. The MarSurf® PS10 is a practical roughness measuring unit for mobile use. Using a smartphone-like 4.3 in TFT touch screen display, operation is fast, intuitive and user friendly. Our next generation MarSurf PS 10 measures 31 roughness parameters, incorporates a removable drive and provides laboratory level performance on the shop floor. With removable drive, touch display and intuitive operation the PS10 is versatile and easy to use.
-
Technical data
|
6910230 – MarSurf PS10 2 µm
|
6910232 – MarSurf PS10 5 µm
|
6910235 – MarSurf PS 10 C2
|
|
|
Measuring principle
|
Stylus method
|
Stylus method
|
Stylus method
|
|
Probe
|
inductive skidded probe
|
inductive skidded probe
|
inductive skidded probe
|
|
Measuring units
|
metric/inches
|
metric/inches
|
metric/inches
|
|
Measuring range mm
|
0,350
|
0,350
|
0.350
|
|
Profile resolution
|
8 nm
|
8 nm
|
8 nm
|
|
Filter according to ISO/JIS
|
Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)
|
Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)
|
Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)
|
|
Short stroke under ISO/JIS
|
selectable
|
selectable
|
selectable
|
|
Traversing length according ISO 12085 (MOTIF)
|
1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm
|
1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm
|
1 mm, 2 mm, 4 mm
|
|
Evaluation lenth In according to ISO/JIS
|
1.25 mm, 4.0 mm, 12.5 mm
|
1.25 mm, 4.0 mm, 12.5 mm
|
1.25 mm, 4.0 mm
|
|
Number n of sampling length according to ISO/JIS
|
selectable: 1 to 16
|
selectable: 1 to 16
|
selectable: 1 to 16
|
|
Stylus
|
2 µm
|
5 µm
|
2 µm
|
|
Measuring force (N)
|
0,00075
|
0,00075
|
0.00075
|
|
Calibration function
|
dynamic; Ra, Rz, Rsm
|
dynamic; Ra, Rz, Rsm
|
dynamic; Ra, Rz, Rsm
|
|
Storage capacity
|
min. 1350 profiles, min. 500,000 results, min. 250 PDF records, expandable to 32 GB with microSD card
|
min. 1350 profiles, min. 500,000 results, min. 250 PDF records, expandable to 32 GB with microSD card
|
min. 3900 profiles, min. 500,000 results, min. 1500 PDF records, expandable with microSD card up to 32 GB
|
|
Other
|
Lock/password protected, date/time
|
Lock/password protected, date/time
|
Lock/password protected, date/time
|
|
System of protection
|
IP 40
|
IP 40
|
IP 40
|
|
Rechargeable batteries
|
Lithium-ion battery, min. 1200 measurements
|
Lithium-ion battery, min. 1200 measurements
|
Lithium-ion battery, min. 1200 measurements
|
|
Wide range power supply
|
100 to 264 V
|
100 to 264 V
|
100 to 264 V
|
|
Dimensions in mm
|
160 mm x 77 mm x 50 mm
|
160 mm x 77 mm x 50 mm
|
160 mm x 77 mm x 50 mm
|
