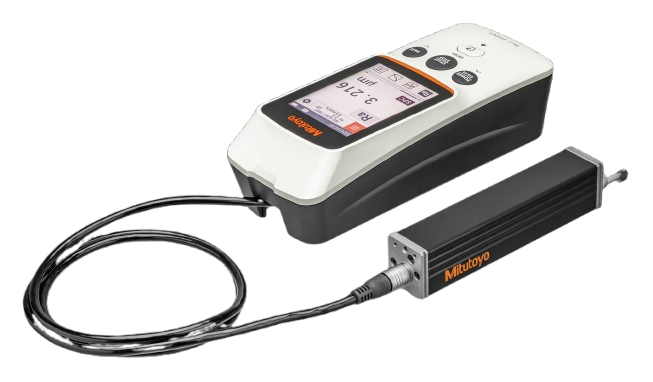

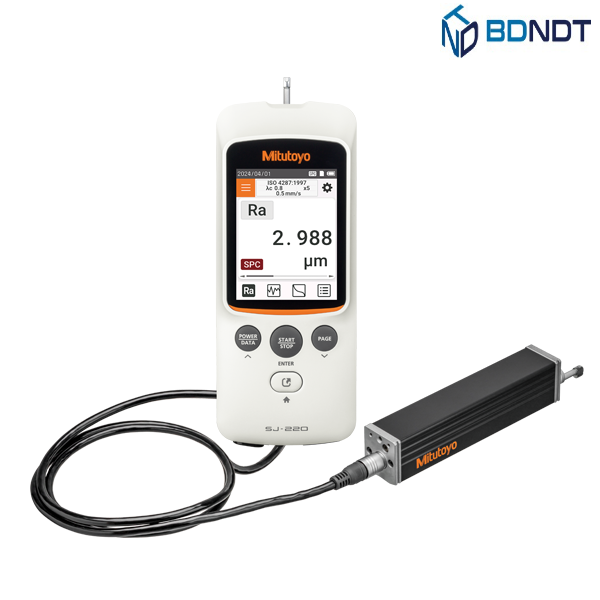

Mitutoyo Surftest SJ-220 Portable Surface Roughness Tester Price
৳ 320,000.00৳ 330,000.00 (-3%)
Features

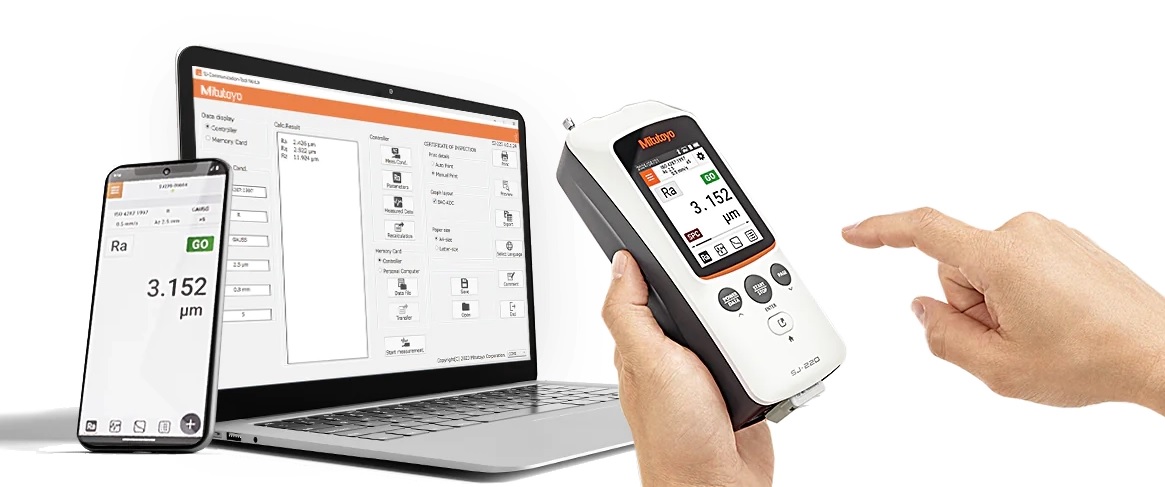

- Increased measuring efficiency capable of displaying results and setting conditions via wireless communication when used with option accessory U-WAVE-TIB
- Built-in 2.8-inch color graphic, back-lit LCD display provides excellent readability, improved visibility and is easy-to-use in dark environments
- Operation keys are clearly defined on the front of the unit and under the sliding cover
- Internal memory stores up to 10 measurement conditions and one measured profile
- An optional memory card can be used to store large quantities of measured profiles and conditions
- Password protection prevents unintended operations and protects instrument settings
- The display interface supports 16 interchangeable languages
- LCD display mode can be freely switched between portrait and landscape as well as left-hand or right –hand direction
- The Surftest SJ-220 complies with the following standards: ISO (ISO 21920, ISO 4287:1997, ISO 13565:1996, ISO 12085:1996, ISO 21920:2021), JIS (JIS B0601:1982, JIS B 0601:1994, JIS B 0601:2013, JIS B 0671:2002, JIS B 0631:2000), ASME B46.1, VDA2006, and Switchable
BDNDT Provide Mitutoyo Surftest SJ-220 Portable Surface Roughness Tester in bangladesh. The Mitutoyo SJ-220 is a compact, high-performance surface roughness tester designed for easy and accurate on-site measurement. Featuring a user-friendly touchscreen, wireless connectivity, and an extended battery life for up to 1,000 measurements per charge, the SJ-220 delivers precision and efficiency without the need for bulky equipment. Its advanced technology ensures accurate roughness evaluation, meeting the latest ISO 21920 standards, making it an indispensable tool for quality control in any manufacturing environment.
Mitutoyo SJ-220 Specifications
| Range X-Axis | .7″/17.5mm |
| Measuring Force | 4mN |
| Stylus Tip (Diamond, angle °/ tip radius) | 90 / 5μm |
| External I/O | USB I/F, Digimatic output, Printer output, RS-232C I/F, Footswitch I/F |
| Measuring Speed | Â .01, .02, .03 in/s / .25, .50, .75 mm/s |
| Returning Speed | .039 in/s / 1 mm/s |
| Detector Z-Range | 1000, 14400, 4000 μin / 100, 25, 360 μm |
| Detector Z-Range Resolution | .08, .20, .80 μin / .002, .006, .02 μm |
| Skid Radius of Curvature | 40 mm |
| Skid Force | less than 400 mN |
| Detector Type | Differential inductance |
| Power Supply (battery) | Rechargeable Ni-MH |
| Power Supply | AC Adapter |
| Charging Time | 4 hrs |
| Endurance | 1000 measurements (approx) |
| External Data Storage | Micro SD card |
| Display Unit | 2.05 x 2.59 x 6.3 in / 52.1 x 65.8 x 160 mm |
| Drive Unit | 4.5 x 9 x 1 in / 115 x 23 x 26 mm |
| Mass | 1.1 lbs / .5 kg |
