Description
Products Description

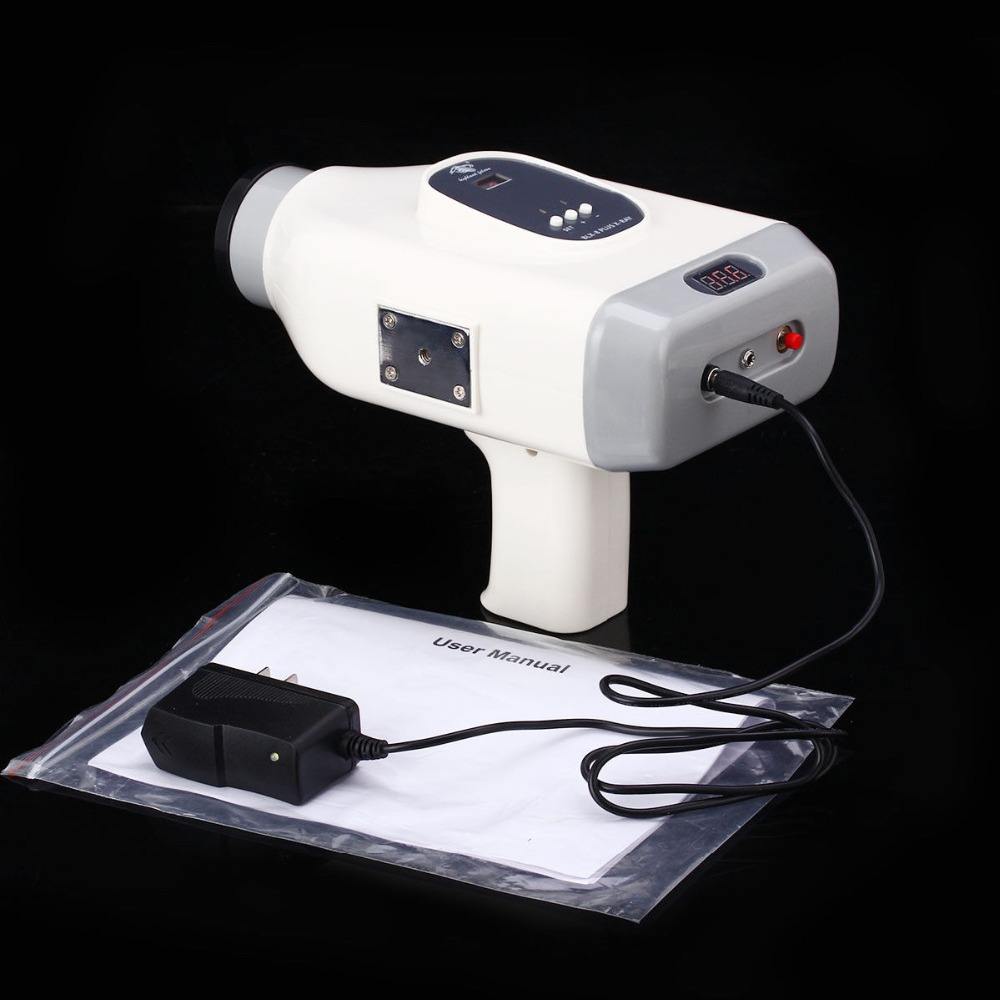

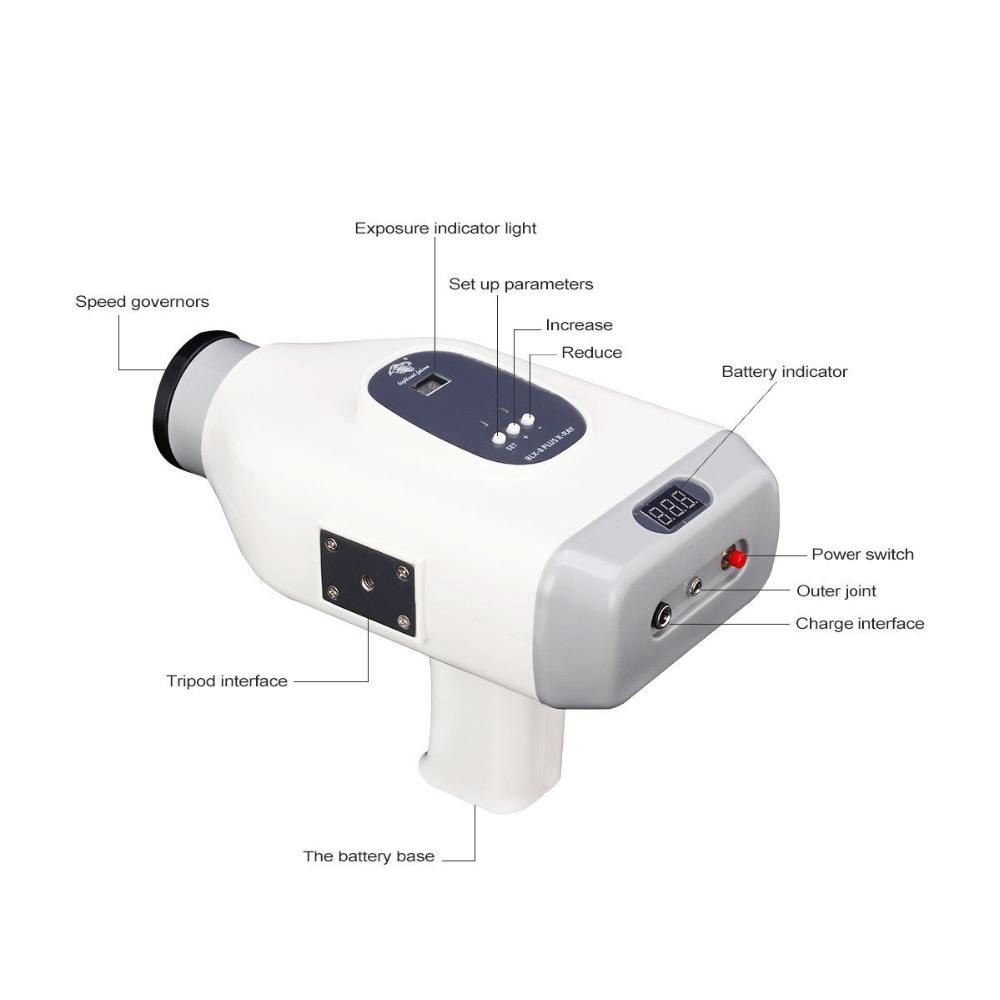

Introduction of dental digital x-ray machine:
This model combines the advantages of similar products found at home and abroad; it eliminates the shortcomings of the
on-frequency X-ray machine (high current intensity and excess amounts of scrap x-rays).Using a Toshiba 0.3 micro-focus tube.The tube voltage frequency of this machine is 30 KHz,and the tube current is 0.1 MA. The radiation scope is at an angle of 24 degrees, located within a distance of 1.2 meters ahead. This is an innovative Chinese design named the “Green X-ray Machine.”
on-frequency X-ray machine (high current intensity and excess amounts of scrap x-rays).Using a Toshiba 0.3 micro-focus tube.The tube voltage frequency of this machine is 30 KHz,and the tube current is 0.1 MA. The radiation scope is at an angle of 24 degrees, located within a distance of 1.2 meters ahead. This is an innovative Chinese design named the “Green X-ray Machine.”
|
Specifications
|
|
|
Product name
|
Dental digital x ray machine
|
|
Tube voltage
|
65KV
|
|
Tube current
|
1mA
|
|
Exposure time
|
0.1~~1.8s
|
|
High pressure generator
|
30kHz DC
|
|
Rated Power
|
60w
|
|
Focal Spot To Skin Distance
|
>20CM
|
|
Focus Spot Size
|
0.3mm(TOSHIBA)
|
|
Charger Input Voltage
|
AC110V~220V
|
|
Supply Frequency
|
30Hz
|
|
Radiation Leakage
|
<20ugy/h
|
|
Battery
|
24V DC 2600MA
|
|
Dimensions
|
37 cm×31 cm×28cm (L×W×H)
|
|
Reference of the Angles:
|
||
|
Tooth
|
Upper
|
Lower
|
|
1-2
|
42
|
-15
|
|
3
|
45
|
-18
|
|
4-5
|
30
|
-10
|
|
6-8
|
28
|
-5
|
